Product Info ... |
 |
|
| Type: |
FB69 |
| Product Name: |
300V 25A |
| Description: |
CAPABILITY
Temp. Range??-40??~+105??
Withstand Voltage??AC2000V/Min
Insulation Resistance??5000m??/DC500V |
|
| |
|
|
| MATERIALS | | Housing??PA66 UL94V-0
Terminal??Brass,0.8t,Tin-plated
Screw??Steel??Ni-Plated |
| ?? ?? | 2
| 3
| 4
| 5
| 6
| 7
| 8
| 9
| 10

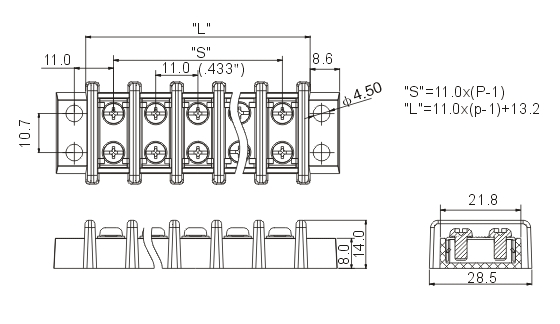

| | L(mm)
| 24.2
| 35.2
| 46.2
| 57.2
| 68.2
| 79.2
| 90.2
| 101.2
| 112.2
| | S(mm)
| 11
| 22
| 33
| 44
| 55
| 66
| 77
| 88
| 99
| | | | ?? ?? | 11
| 12
| 13
| 14
| 15
| 16
| 17
| 18
| 19
| | L(mm)
| 123.2
| 134.2
| 145.2
| 156.2
| 167.2
| 178.2
| 189.2
| 200.2
| 211.2
| | S(mm)
| 110
| 121
| 132
| 143
| 154
| 165
| 176
| 187
| 198
| | | | ?? ?? | 20
| 21
| 22
| 23
| 24
| 25
| 26
| 27
| 28
| | L(mm)
| 222.2
| 233.2
| 244.2
| 255.2
| 266.2
| | | | | | S(mm)
| 209
| 220
| 231
| 242
| 253
| | | | |  |
|
|
