  Product Catalog > Buzzer > Mechanical-Buzzer
Check your order list
Product Info ...
Type: FBMMB2315P(A,B,C,D,E,F)
Product Name: Mechanical Buzzer

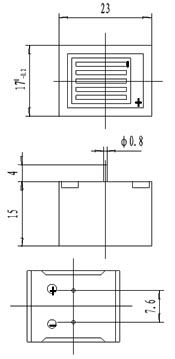

Description: 23*17*15mm
China Mechanical buzzer manufacturer FBMMB2315P(A,B,C,D,E,F), FBELE Brand,


Model FBMMB2315PA FBMMB2315PB FBMMB2315PC FBMMB2315PD FBMMB2315PE FBMMB2315PF
Rated Voltage   1.5VDC    3VDC    6VDC   9VDC   12VDC    24VDC
Operating Voltage   1~2VDC   2~4VDC   4~8VDC   6~12VDC   9~15VDC  15~27VDC
Max.Rated Current 20mA/1.5VDC 25mA/3VDC 25mA/6VDC 25mA/9VDC 25mA/12VDC 25mA/24VDC
Min.Sound Pressure Level 70dB/20cm 75dB/20cm 75dB/20cm 75dB/20cm 75dB/20cm 75dB/20cm
Resonant Frequency 400±100Hz 400±100Hz 400±100Hz 400±100Hz 400±100Hz 400±100Hz
 Operating Temperature -20~+60°C -20~+60°C -20~+60°C -20~+60°C -20~+60°C -20~+60°C
