　 Product Catalog > Buzzer > Magnetic-Buzzer
Check your order list
Product Info ...
Type: FBMB1295A(1,2,3,4,5)
Product Name: Magnetic Buzzer

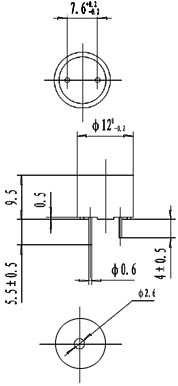

Description: Ø12*9.5mm,
China Mechanical buzzer manufacturer FBMB1295A(1,2,3,4,5), FBELE Brand,
　

Model FBMB1295A1 FBMB1295A2 FBMB1295A3 FBMB1295A4  FBMB1295A5

Rated Voltage

1.5VDC

    3VDC    5VDC   9VDC    12VDC
Operating Voltage     1~2VDC  2~5VDC  4~8VDC  7~12VDC  8~15VDC
Max.Rated Current  20mA at 1.5VDC 30mA at 3VDC 30mA at 5VDC 30mA at 9VDC 30mA at 12VDC
Min.Sound Pressure Level 75dB/10cm 80dB/10cm 85dB/10cm 85dB/10cm 85dB/10cm
Resonant Frequency 2300±300Hz 2300±300Hz 2300±300Hz 2300±300Hz 2300±300Hz
Operating Temperature -20~+70°C -20~+70°C -20~+70°C -20~+70°C -20~+70°C

　
