  Product Catalog > Buzzer > Magnetic-Transducer
Check your order list
Product Info ...
Type: FBMT1275(A,B)
Product Name: Magnetic Transducer

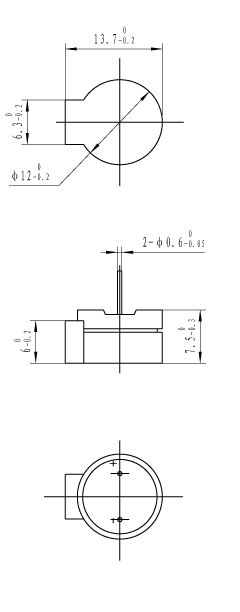

Description: Ø12*7.5mm
China Mechanical buzzer manufacturer FBMT1275(A,B), FBELE Brand,


Model FBMT1275A FBMT1275B
Rated Voltage  1.5V   1.5V
Operating Voltage  1~2V   1~2V
Max.Rated Current  70mA  70mA

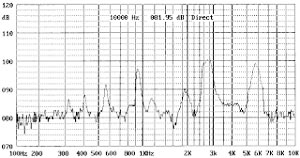

Resonant Frequency  2650Hz  2731Hz
Min.Sound Pressure Level  98dB/10cm 85dB/10cm
Coil Resistance(DC)  6.5±1Ω 5.5±1Ω
Coil Impedance(AC)    22Ω 9.5±3Ω
Operating Temperature -20~+70°C -20~+70°C
