Product Catalog > Buzzer > Magnetic-Transducer

Check your order list

Product Info ...

Type:	FBMT1285(A,B,C)
Product Name:	Magnetic Transducer

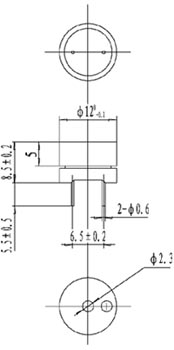

Description:	Ø12*8.5mm China Mechanical buzzer manufacturer FBMT1285(A,B,C), FBELE Brand,

Model FBMT1285A FBMT1285B FBMT1285C

Rated Voltage 1.5V 1.5V 1.5V

Operating Voltage 1~2V 1~2V 1~2V

Max.Rated Current 30mA 10mA 10mA

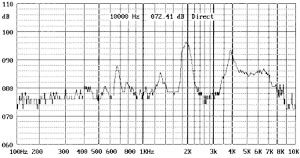

Resonant Frequency 2048Hz 2048Hz 2048Hz

Min.Sound Pressure Level 85dB/10cm 80dB/10cm 80dB/10cm

Coil Resistance(DC) 16±4Ω 42±6Ω 50±7.5Ω

Coil Impedance(AC) 40Ω 120Ω 140Ω

Operating Temperature -20~+60°C -20~+70°C -20~+70°C
