　 Product Catalog > Buzzer > Magnetic-Transducer
Check your order list
Product Info ...
Type: FBMT9605(A,B)
Product Name: Magnetic Transducer

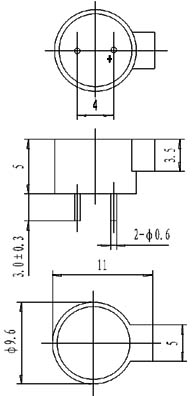

Description: Ø9.6*5mm,
China Mechanical buzzer manufacturer FBMT9605(A,B), FBELE Brand,
　

Model FBMT9650A FBMT9650B
Rated Voltage  1.5V   1.5V
Operating Voltage  1~2V   1~2V
Max.Rated Current  80mA  80mA

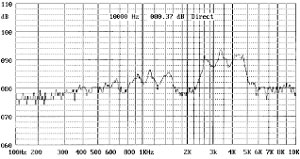

Resonant Frequency  2731Hz  3050Hz
Min.Sound Pressure Level  85dB/10cm 85dB/10cm
Coil Resistance(DC)  5.5±1Ω 5.5±1Ω
Coil Impedance(AC) 9.5±3Ω 9.5±3Ω
Operating Temperature -20~+70°C -20~+70°C

　
