  Product Catalog > Buzzer > Piezo-Transducer
Check your order list
Product Info ...
Type: FBPT3010
Product Name: Piezo Transducer

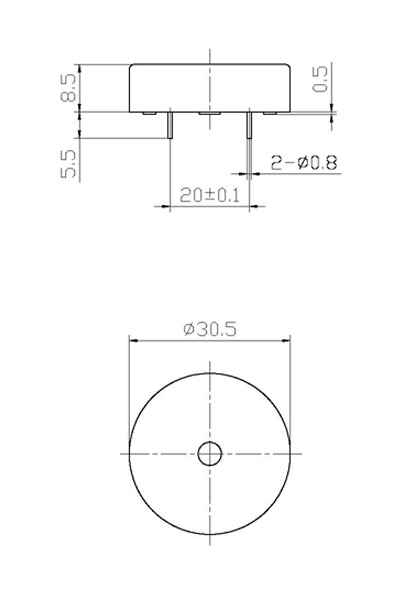

Description: 30*9mm,
China Piezo Transducer manfacturer FBPT3010, FBELE Brand,


Rated Voltage

12Vp-p Square Wave

Max.Allowable Voltage

30Vp-p Square Wave

Max.Rated Current

5mA at 3.6KHz/12Vp-p Square Wave

Min.Sound Pressure Level

85dB at 3.6KHz/12Vp-p Square Wave/10cm

Resonant Frequency

3.6±0.5KHz

Operating Temperature

-20~+80°C

Capacitance

18nF at 120Hz
