| Type: |
EM-9750U |
| Product Name: |
Electret Condenser Microphone |
| Description: |
EM-9750U

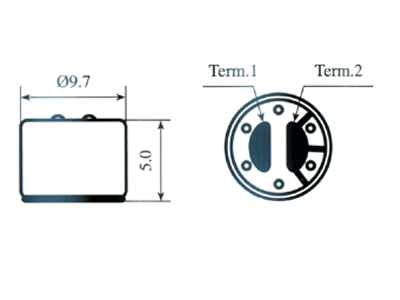

Dimensions : 9.7x5.0mm
Sensitivity: -47dB-??3dB ,Vs=1.5V RL=680K??
Frequency range :100-16,000Hz
Directivity :Unidirectional
Impedance:??2.2 K??
Current consumption: Maximum:500??A
Standard operation voltage:1.5V
Maximum operation voltage:10V
Sensitivity reduction:Within-3dB at 1.5V
S/N ratio :More than 60dB |
|
| |
|
|
