| Type: |
EM-9790(P) |
| Product Name: |
Electret Condenser Microphone |
| Description: |
EM-9790(P)

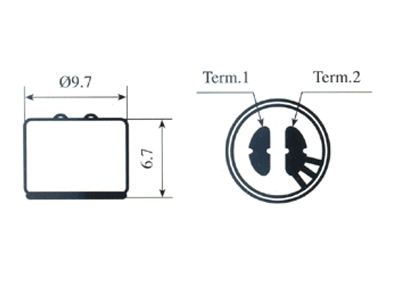

Dimensions : 9.7x9.0mm
Sensitivity: -38dB---46dB ,Vs=4.5V RL=2.2K??
Frequency range :20-200,000Hz
Directivity :Omnidirectional
Impedance:??2.2 K??
Current consumption: Maximum:500??A
Standard operation voltage:4.5V
Maximum operation voltage:10V
Sensitivity reduction:Within-3dB at 1.5V
S/N ratio :More than 60dB |
|
| |
|
|
