  Product Catalog > Small-Electrical-Motor > .Small-Electrical-Motor
Check your order list
Product Info ...
Type: RE-140RA
Product Name: DC micro motor
Description: small electrical motor RE-140RA
Metal-brush motors
Motorized Toy / Motorized Plastic Model
OUTPUT:0.2W-3.0W (APPROX)
WEIGHT: 19g (APPROX)

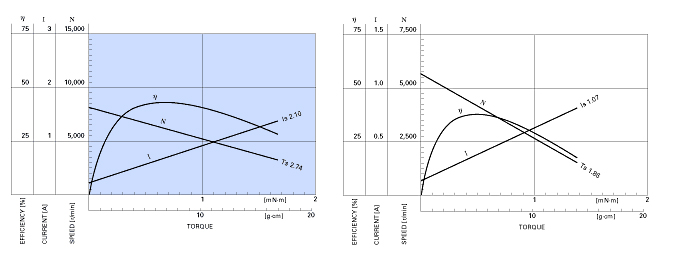

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
RANGE V r/min A r/min A mN·m g·cm W mN·m g·cm A
RE-140RA 2270 1.5 - 3.0 1.5 8100 0.21 6150 0.66 0.66 6.7 0.42 2.74 28 2.1
18100 1.5 - 3.0 1.5 5700 0.13 4230 0.37 0.48 4.9 0.21 1.86 19 1.07
12240 3.0-6.0 3 4800 0.05 3530 0.14 0.44 4.5 0.16 1.67 17 0.39
