Product Info ... |
 |
|
| Type: |
FBGTF(1035,1036) |
| Product Name: |
51F(52F)��?5.2??20 Glass Tube Fuse (Quick-acting?? |
| Description: |

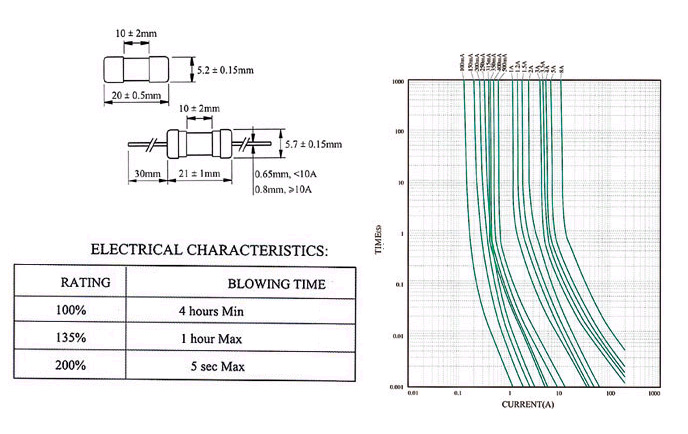

INTERRUPTING RATING:
10,000 amperes at 125V AC(32mA-5A)
35 amperes at 250V AC(32mA-1A)
100 amperes at 250V AC(1.2A-3.5A)
200 amperes at 250V AC(4A-5A)
500 amperes at 125V AC(1A-15A)MITI TYPE A
100 amperes at 250V AC(1A-15A)MITI TYPE A
UL/CSA/T-MARK |
|
| |
|
|
| | Appliance Lamp Holder | FBGTF1035-0100 | FBGTF1035-0125 | FBGTF1035-0150 | FBGTF1035-0160 | FBGTF1035-0200 | FBGTF1035-0250 | FBGTF1035-0300 | FBGTF1035-0315 | FBGTF1035-0350 | FBGTF1035-0400 | | Rated Current | 100mA | 125mA | 150mA | 160mA | 200mA | 250mA | 300mA | 315mA | 350mA | 400mA | | Appliance Lamp Holder | FBGTF1035-0500 | FBGTF1035-0600 | FBGTF1035-0700 | FBGTF1035-0750 | FBGTF1035-0800 | FBGTF1035-1000 | FBGTF1035-1200 | FBGTF1035-1250 | FBGTF1035-1500 | FBGTF1035-1600 | | Rated Current | 500mA | 600mA | 700mA | 750mA | 800mA | 1A | 1.2A | 1.25A | 1.5A | 1.6A | | Appliance Lamp Holder | FBGTF1035-1800 | FBGTF1035-2000 | FBGTF1035-2500 | FBGTF1035-3000 | FBGTF1035-3150 | FBGTF1035-3500 | FBGTF1035-4000 | FBGTF1035-5000 | FBGTF1035-6000 | FBGTF1035-6300 | | Rated Current | 1.8A | 2.0A | 2.5A | 3.0A | 3.15A | 3.5A | 4.0A | 5.0A | 6.0A | 6.3A | | Appliance Lamp Holder | FBGTF1035-7000 | FBGTF1035-8000 | FBGTF1035-10000 | FBGTF1035-12000 | FBGTF1035-15000 | | | | | | | Rated Current | 7.0A | 8.0A | 10.0A | 12.0A | 15.0A | |  | | |
|
|
