  Product Catalog > Buzzer > Magnetic-Buzzer
Check your order list
Product Info ...
Type: FBMB1275A(1,2,3)
Product Name: Magnetic Buzzer

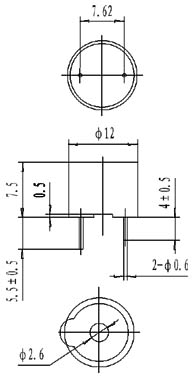

Description: Ø12*7.5mm,


Model FBMB1275A1 FBMB1275A2 FBMB1275A3
Rated Voltage   3VDC    5V   12V
Operating Voltage   2~5V   4~8V  8~16V
Max.Rated Current   30mA/3VDC  30mA/5VDC  30mA/12VDC
Resonant Frequency 3100±500Hz 3100±500Hz 3100±500Hz
Min.Sound Pressure Level  85dB/10cm 85dB/10cm 85dB/10cm
Operating Temperature  -20~+70°C  -20~+70°C -20~+70°C
