　 Product Catalog > Electronics > Mini-Glass-Tube-Fuse
Check your order list
Product Info ...

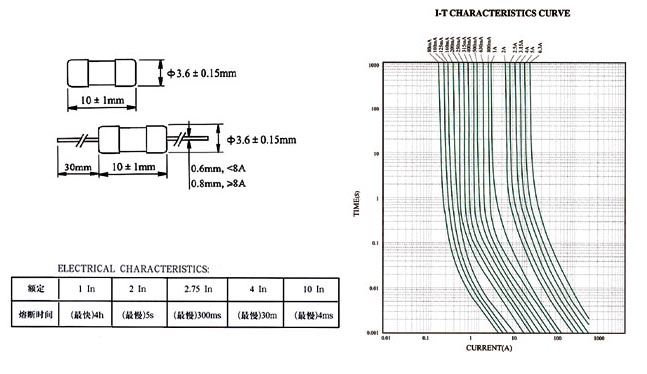

Type: FBMGTF(1003,1004)
Product Name: RF1-10(RF2-10) Outer weld ¡ì?3.6??10 Glass Tube Fuse (Quick-acting)
Description: INTERRUPTING RATING:
50 amperes at 125V AC (100mA-15A)
50 amperes at 250V AC (100mA-15A)
　

Appliance Lamp Holder
 FBMGTF1003-0100 FBMGTF1003-0125 FBMGTF1003-0150 FBMGTF1003-0160 FBMGTF1003-0200 FBMGTF1003-0250 FBMGTF1003-0300 FBMGTF1003-0315 FBMGTF1003-0350 FBMGTF1003-0400
Rated Current
 100mA 125mA 150mA 160mA 200mA 250mA 300mA 400mA 500mA 600mA
Rated Voltage
 1750 1500 1500 1500 1500 1000 1000 1000 1000 900
Appliance Lamp Holder
 FBMGTF1003-0700 FBMGTF1003-0750 FBMGTF1003-0800 FBMGTF1003-1000 FBMGTF1003-1200 FBMGTF1003-1500 FBMGTF1003-1600 FBMGTF1003-1800 FBMGTF1003-2000 FBMGTF1003-2500
Rated Current
 700mA 750mA 800mA 1A 1.2A 1.5A 1.6A 1.8A 2A 2.5A
Rated Voltage
 500 500 275 275 275 275 275 275 250 250
Appliance Lamp Holder
 FBMGTF1003-3000 FBMGTF1003-3150 FBMGTF1003-3500 FBMGTF1003-4000 FBMGTF1003-5000 FBMGTF1003-6000 FBMGTF1003-6300 FBMGTF1003-7000 FBMGTF1003-8000 FBMGTF1003-10000
Rated Current
 3A 3.15A 3.5A 4.0A 5.0A 6.0A 6.3A 7.0A 8.0A 10.0A
Rated Voltage
 250 250 250 225 225 225 200 200 200 200
Appliance Lamp Holder
 FBMGTF1003-12000 FBMGTF1003-15000
Rated Current
 12.0A 15.0A
Rated Voltage
 180 180

　
