  Product Catalog > Telephone-Connector-and-Accessory > PCB-Jack
Check your order list
Product Info ...

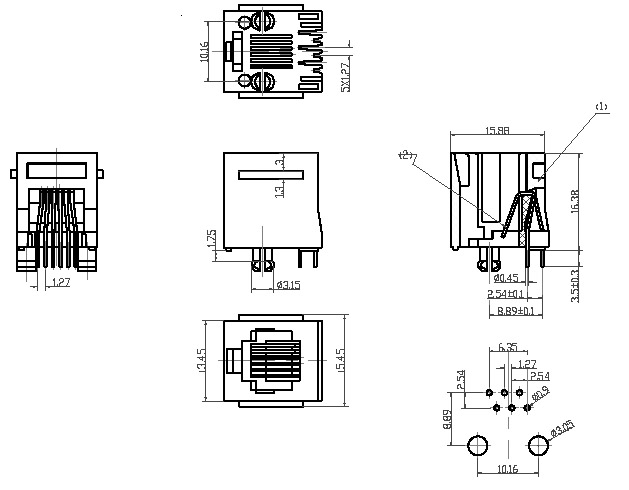

Type: FB-22-04 5222 6P(split peg)
Product Name: PCB JACK
Description: ELECTRICAL
CURRENT RATING:1.5AMPS

VOLTAGE RATING:125VAC

INSULATION RESISTANCE:100MEGOHMS MINI

WITHSTAND VOLTAGE:AC 1000V RMS 50Hz or 60Hz 1 MIN

CONTACT RESISTANCE:20MILLMHOS MINI


MECHANICAL

INSERTIONFORCE:2CONTACTS..350g 4CONTACTS..500g

                        6CONTACTS..750g 8CONTACTS..900g

                       10CONTACTS..1050g

RETENTION STRENGTH:7.7Kg BETWEEN JACK AND PLUG

CRIMP TENSILE STRENGTH:2.27Kg

DURABILITY: 750MATING CYCLES MIN

MATERIAL

HOUSING:1)ABS RESIN(UL94V-0)   2)GLASS FILLED PBT(UL94V-0)

CONTACT WIRE:1)0.45mm DIA PHOSPHOR BRONZE GOLD

                      PLATING OVER NICKEL

                      2)0.35mm THICKNESS PHOSPHOR BRONZE

                      ALLOY SELEOTIVE GOLD PLATING OVER NICKEL

SHIELDING:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED

GOLD PLATING:3INCH,6u INCH,15u INCH,30u INCH,50u INCH
