  Product Catalog > Acoustic-Component-&-Security > PIR-detector
Check your order list
Product Info ...
Type: FBPIR-4
Product Name: DUAL PASSIVE INFRARED DETECTOR
Description: FEATURES
1)Ceiling mounted
2)Metal shield with electromagnetism immunity
3)Pulse count optional
4)360??Viewing
5)Detecting range optional
6)Auto Temperature Compensation ,reducing false alarm
7)LED ON&OFF Optional for different alarm
8)Alarm Duration Adjustable


TECHNICAL SPECIFICATION
Operating Voltage: DC 9-16V
Supply Current:≤25mA    DC 12V
Working Temperature ??-10?? to +50??
Installation Method: ceiling mounted
Installation Height: 2.5-6m

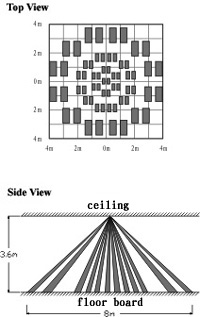

Detecting Angle: 360°
Detecting Range: 6-8m (installation height:3.6m)
Alarm Output: Normal Close/ Normal Open
Anti Tamper Switch: Normal Close
Size ??125*43.5mm
