  Product Catalog > Telephone-Connector-and-Accessory > Plug
Check your order list
Product Info ...

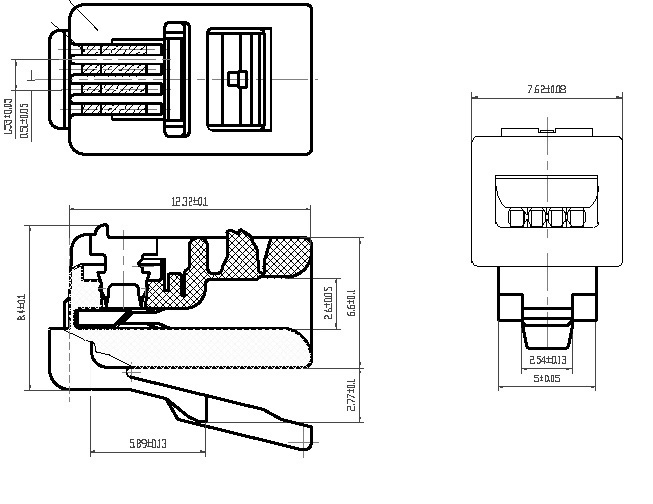

Type: FB-003 4p4c-Top tips
Product Name: Plug
Description: ELECTRICAL
CURRENT RATING:1.5AMPS

VOLTAGE RATING:125VAC

WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min

INSULATION RESISTANCE:100MEGOHMS MIN

CONTACT RESISTANCE:39MILLMHOS MAX


MECHANICAL

CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI

DURABILITY:750MATING CYCLES MINI

MATERIAL

HOUSING:POLYCARBONATE(PC)UL 94V-0 OR UL 94V-2

CONTACT:PHOSPHOR BRONZE,HARD GOLD PLATED OVER NICKEL

SHIELDINJG:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED

GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH

WORKING TEMPERATURE

-40°C ~60°C
