  Product Catalog > Acoustic-Component-&-Security > Speaker
Check your order list
Product Info ...
Type: FBF36-4P
Product Name: Mylar Speaker
Description: 36mm*9.5mm,0.25w,Ferrite
(8,16,32,64,100ohm)


MODEL£º

FBF36-4P

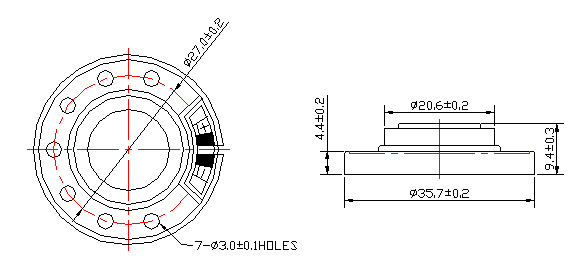

DIMENSION£º

36mm  x  9.5mm

VOICE COIL IMP£º

8 ohm

SOUND PRESSVRE LEVEL£¨S.P.L£©£º

86 dB

RESONAT FREQUENEY£º

520 Hz

EFFECTIVE FREQUENEY£º

fo-11000 Hz

NOISE POWER£º

0.25 w

MAGNET SIZE AND ASSEMBLY£º

21mm Ferrite

MODEL£º

FBF36-4P

DIMENSION£º

36mm  x  9.5mm

VOICE COIL IMP£º

8 ohm

SOUND PRESSVRE LEVEL£¨S.P.L£©£º

86 dB

RESONAT FREQUENEY£º

520 Hz

EFFECTIVE FREQUENEY£º

fo-11000 Hz

NOISE POWER£º

0.25 w

MAGNET SIZE AND ASSEMBLY£º

21mm Ferrite
