  Product Catalog > Acoustic-Component-&-Security > Speaker
Check your order list
Product Info ...
Type: FBS158A
Product Name: Loudspeaker

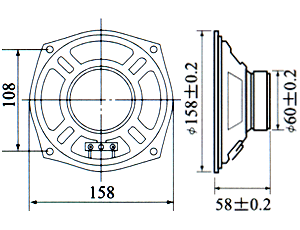

Description: 158*158*58mm,91dB


Model No.
Rated
Impedance
(Ω±15%)
Rated
Power
(W)
Max.
Power
(W)
Resonant
Frequency
(Hz±20%)

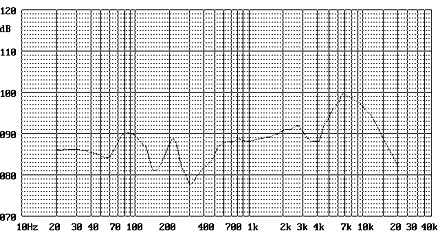

Frequency
Range
Fo(Hz)

Sound
Pressure Level
(±3dB)

Operating
Temperature
(??)
Magnet
Size
(mm)
Size
(mm)
Diameter
Height
FBS158A
4
10
15
80
12000
91
-20 ~ +55
60X32X10
158X158
58
