  Product Catalog > Telephone-Connector-and-Accessory > Wired-Jack
Check your order list
Product Info ...

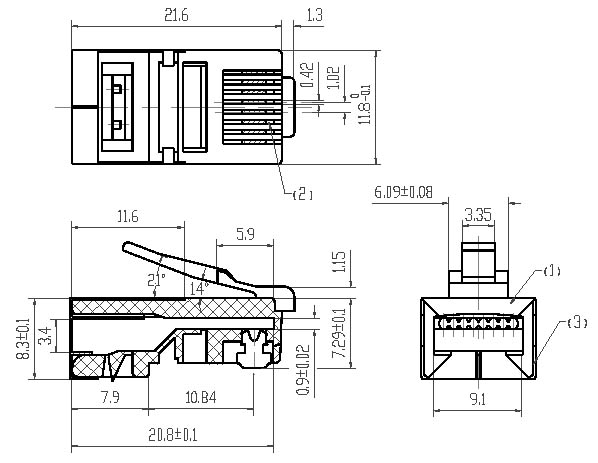

Type: FBWJ-04 616M
Product Name: Wired Jack
Description: ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
INSULATION RESISTANCE:100MEGOHMS MINI
WITHSTAND VOLTAGE: AC 1000V RMS 50Hz or 60Hz 1 MIN
CONTACT RESISTANCE:20MILLMHOS MINI


MECHANICAL

MATING FORCE:2 WIRE LEAD..350g 4 WIRE LEAD..500g 6 WIRE

                     LEAD..750g 8 WIRE LEAD 900g

RETENTION STRENGTH:7.7Kg BETWEEN JACK AND PLUG

CRIMP TENSILE STRENGTH:2.27Kg

DURABILITY:200MATING CYCLES MINI

MATERIAL

HOUSING: STANDARD  ABS  RESIN(UL94V-0)

CONTACT WIRE:0.46mm DIAMETER PHOSPHOR BRONZE

                     OPTIONAL GOLD PLATING OVER NICKEL

GOLD PLATING:??3u  INCH,??6u  INCH,??15u  INCH,??30u

                    INCH,??50u  INCH.

WIRE STYLES:UL  1061  26  AWG  STRANDS
